Extreme Trailers - EXT 1100 Swing Roller

Extreme Trailers - EXT 1100 Swing Roller

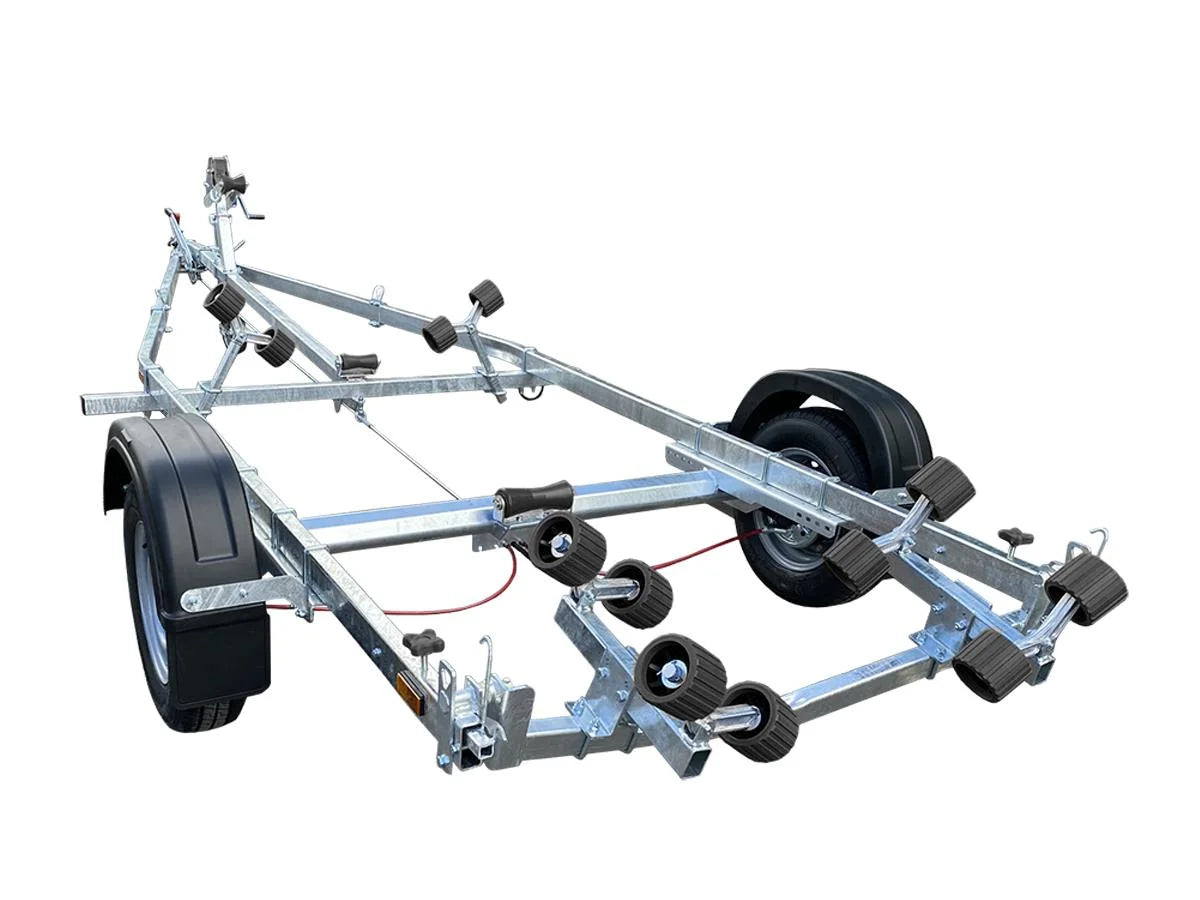

The EXT 1100 Swing Roller is a heavy-duty, fully galvanised boat trailer designed and manufactured in the UK, capable of carrying a boat weight of up to 820kg. Its fully adjustable design, including an adjustable swing arm and numerous wobble rollers, allows it to accommodate most hull shapes, facilitating easy launch and recovery.

Extreme Trailers - EXT 1100 Swing Roller Key Features

Standard features include :

• Heavy duty fully galvanised frame

• AL-KO axle with flushing kit

• Waterproof sealed bearings

• lockable coupling

• Adjustable swing arm

• 12 non marking wobble rollers

• 2 Heavy duty keel rollers

• Heavy duty height adjustable winch post

• 165R13 wheels

• Heavy duty 42mm jockey wheel with cast clamp

• 1000lb Winch

• Light board on extendable bars

Extreme EXT 1100 Swing Roller Trailer FAQs

What types of boats is the trailer suitable for?
The trailer is suitable for dinghies up to 19ft (with overhang), hard boats up to 16ft, and RIBs up to 5.2m.

What is the maximum weight capacity?
The trailer itself has a weight of 280kg, making it suitable for a boat weight of up to 820kg. The gross weight (trailer plus boat) is 1100kg.

What are the overall dimensions of the trailer?
The overall length is typically listed as 5.45m (or up to 5.90m depending on the variant) and the width is 2.05m.

Can the trailer be adjusted to fit my specific hull shape?
Yes, everything on the Extreme Trailers EXT 1100 is designed to be fully adjustable, including the rollers, the swinging arm, and the winch post, to accommodate most hull shapes.

Is it a braked or un-braked trailer?
The Extreme EXT 1100 model is a braked trailer, as the gross weight is over the 750kg un-braked limit as per UK law
