Extreme EXT 750 Maxi Roller Trailer

Extreme EXT 750 Maxi Roller Trailer

Extreme EXT 750 Maxi Roller Trailer are designed to take the stress out of your day on the water. Proudly manufactured in the UK, the EXT 750 Maxi Roller combines a heavy-duty, hot-dipped galvanised frame with a highly adjustable roller system, ensuring your hull is perfectly supported during transit and effortless to slide into the water.

With a gross capacity of 750kg and a generous payload of 605kg, this trailer is the ideal companion for vessels up to 5.0m. At Morgan Marine, we know that no two boats are the same—which is why every component on this trailer is adjustable, allowing us to tailor the fit specifically to your hull shape.

Extreme EXT 750 Maxi Roller Trailer Key Features

• Superior Hull Support: Equipped with 16 non-marking wobble rollers and heavy-duty keel rollers, providing a stable "cradle" that protects your gelcoat and makes recovery a breeze.
• Built to Last: The waterproof sealed bearings and hot-dipped galvanised frame are designed to withstand the harsh marine environment, significantly reducing maintenance and extending the life of your axle.
• Fully Adjustable Design: From the height-adjustable winch post to the position of the rollers, this trailer can be fine-tuned to ensure the perfect weight distribution for safe towing.
• British Engineering: Designed and manufactured in the UK using high-quality components, including an AL-KO axle and a powerful Dutton Lainson winch.
• Road Ready: Comes standard with a light board on extendable bars and a 48mm jockey wheel, ensuring you are legal and ready to hit the road the moment you leave our yard.

Specifications:

• • Gross Weight: 750kg
  • Payload Capacity: 605kg
  • Trailer Weight: 145kg
  • Overall Length: 4.75m
  • Overall Width: 1.57m
  • Suitable For: RIBs (up to 5m),  Hard Boats (up to 14ft), Dinghies (up to 16ft with overhang)

Morgan Marine Tip: To ensure the longevity of your new trailer, we always recommend a fresh-water rinse after every launch in saltwater—especially around the wheels and brakes!

Extreme EXT 750 Maxi Roller Trailer FAQs

Is this trailer suitable for my boat?

The EXT 750 Maxi Roller is designed for a variety of small to medium craft. It is generally suitable for:

• • Dinghies: Up to 16' (allowing for some overhang).
  • Hard Boats: Up to 14'.
  • RIBs: Up to 5.0m.

What are the weight capacities?

This is a 750kg gross capacity trailer.

• • Unladen Weight: 145kg.
  • Payload (Boat Weight): Up to 605kg.

Note: Always remember to account for the weight of your engine, fuel, and gear when calculating your boat's total weight.

Can the trailer be adjusted to fit my specific hull?

Absolutely. One of the best features of the Extreme range is that everything is adjustable. The 16 non-marking "wobble" rollers can be moved to cradle your hull perfectly, and the winch post is height-adjustable to ensure the correct snug fit for your bow.

How does the "Maxi Roller" system help with launching?

The "Maxi" setup features 16 nylon non-marking wobble rollers and heavy-duty keel rollers. Unlike traditional bunks, these rollers allow the boat to glide off the trailer with minimal effort, making solo launching and recovery much easier—even on shallower slipways.

Is this trailer "Road Legal" for UK use?

Yes, it is fully Type Approved and comes with a Certificate of Conformity. It is an unbraked trailer, meaning it is legal for use in the UK and Europe provided your vehicle’s unbraked towing capacity is at least 750kg.

What maintenance do the wheel bearings require?

The EXT 750 comes standard with waterproof sealed bearings. While these are designed for marine environments, we always recommend a quick freshwater rinse after launching in salt water to prolong their lifespan.

What are the overall dimensions for storage?

If you are measuring up your garage or driveway, the dimensions are:

Overall Length: 4.75m.

Overall Width: 1.57m.

The light board is on extendable bars, which can be removed or retracted to save space when stored.

What accessories are included as standard?

When you buy from Morgan Marine, your trailer comes "ready to go" with:

• • A 1000lb or 1400lb manual winch (depending on current stock/batch).
  • A 48mm jockey wheel with a pressed clamp.
  • A Lighting Board with extendable bars.
  • 10" Wheels for a low centre of gravity and stable towing.

Can I choose a different colour?

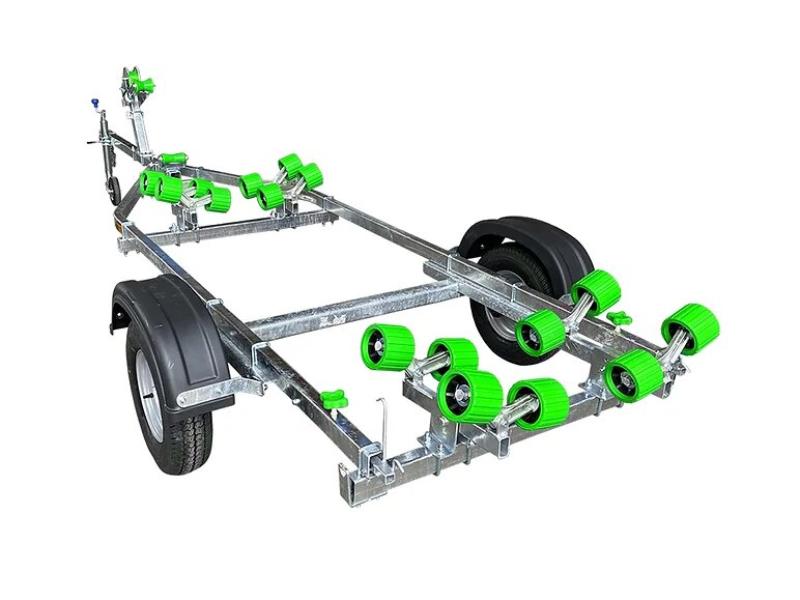

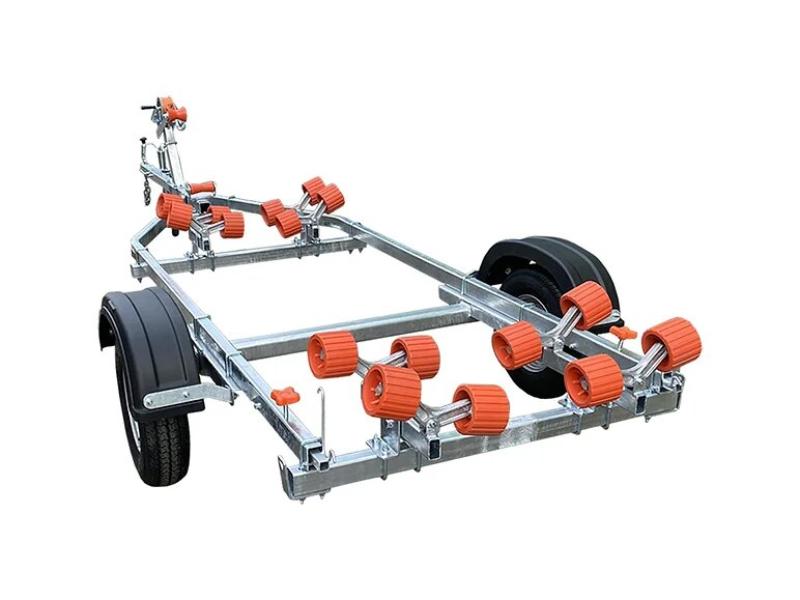

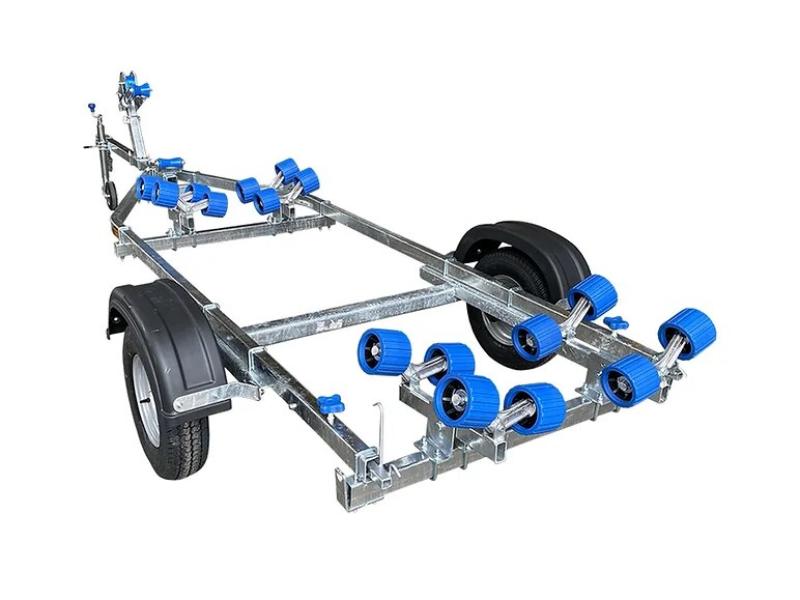

Yes! While the frame is always high-quality galvanised steel, you can customise the look with different roller colours (Blue, Black, Green, Grey, Orange, or Red).

Does it come with a warranty?

Yes, all Extreme Trailers come with a 2-year manufacturer's warranty on the chassis. To activate this, simply register your trailer on the Extreme Trailers website within three months of purchase.
