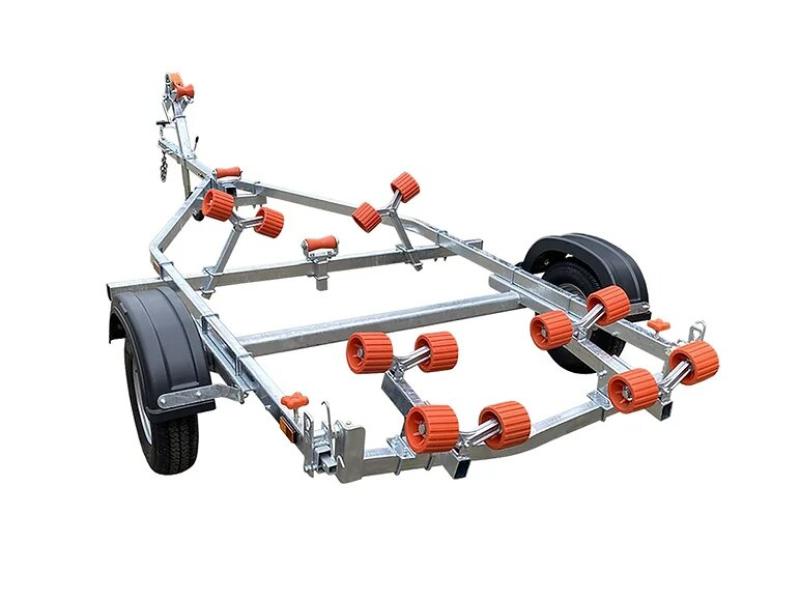

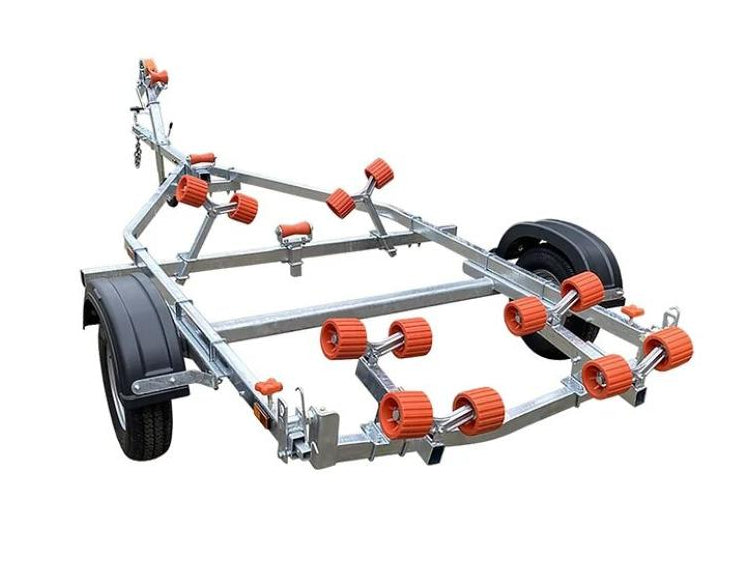

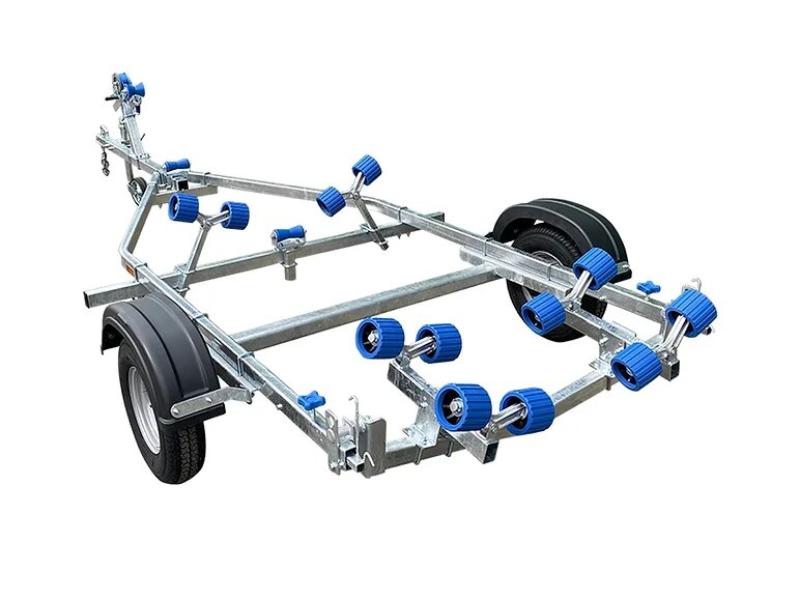

Extreme EXT 750 Compact Swing Roller Trailer

Extreme EXT 750 Compact Swing Roller Trailer

Extreme EXT 750 Compact Swing Roller Trailer are engineered to make your life easier.

Designed and manufactured right here in the UK, this trailer is the perfect partner for hard boats up to 14' and RIBs up to 5m. Its standout feature is the adjustable swinging arm, which cradles your boat and guides it onto the trailer with ease—ideal for those tricky solo launches or recovering in choppy waters.

Extreme EXT 750 Compact Swing Roller Trailer Key Features

• Customisable Fit: Everything on this trailer is fully adjustable. Using a clever U-bolt construction, we can tailor the setup to suit almost any hull shape, ensuring your pride and joy is perfectly supported.
• Built to Last: The heavy-duty frame is hot-dipped galvanised to BS EN ISO 1461 standards. Combined with waterproof sealed bearings, it’s built to withstand the harsh marine environment.
• Effortless Recovery: Equipped with 12 non-marking blue "Wobble Rollers" and two heavy-duty keel rollers, your boat will glide on and off without a scratch.
• Road Ready: Comes complete with an extendable light board and a high-quality winch as standard, so you’re ready to hit the road as soon as you leave our yard.

Technical Specifications

• • Gross Vehicle Weight: 750kg
  • Load Capacity: 580kg
  • Trailer Weight: 170kg
  • Overall Length : 4.75m
  • Overall Width : 1.85m
  • Winch : 1000lb or 1400lb Dutton Lainson (Model dependent)
  • Wheels: 10" with high-speed tyres
  • Jockey Wheel : Heavy-duty 42mm with cast clamp

Standard Equipment Included:

• • Adjustable Swinging Arm: For superior hull alignment during recovery.
  • Non-Marking Rollers: 12 premium wobble rollers to protect your gelcoat.
  • Waterproof Bearings: Sealed for life to ensure longevity and smooth towing.E
  • xtendable Light Board Bars: Quickly adjust for different boat lengths.
  • Winch Post: Fully height-adjustable to suit your bow eye height

Extreme EXT 750 Compact Swing Roller Trailer FAQs

What kind of boats is the EXT 750 Compact Swing suitable for?

This trailer is a versatile workhorse, specifically designed for:

• • Hard Boats up to 14' (4.27m)
  • RIBs up to 5.0m
  • Dinghies up to 17' (with suitable overhang) It features a fully adjustable frame, meaning we can fine-tune the winch post and rollers to match your hull's specific profile perfectly.

What is the actual carrying capacity?

The "750" in the name refers to the Gross Vehicle Weight (GVW).

• • Unladen Trailer Weight: 170kg
  • Payload (Max Boat Weight): 580kg This makes it an ideal unbraked trailer for mid-sized craft, providing plenty of headroom for your engine and gear.

How does the "Swing Roller" system help me at the slipway?

The "Swing" refers to the rear adjustable swinging arm. Unlike fixed roller trailers, this arm pivots to find the angle of your hull as you approach. This makes self-centring almost effortless, even in choppy water or cross-tides. With 12 non-marking wobble rollers and 2 heavy-duty keel rollers, your boat is supported across its strongest points.

Is the trailer protected against saltwater?

Absolutely. Every Extreme trailer we sell is 'hot dipped' galvanised to BS EN ISO 1461 standards. Furthermore, this model is fitted with waterproof sealed bearings, ensuring that the most vulnerable part of your trailer remains protected during launch and recovery.

What are the dimensions for storage?

If you’re measuring up your garage or driveway, here are the key figures:

• • Overall Length: 4.75m
  • Overall Width: 1.85m It’s a compact design, hence the name, making it much easier to manoeuvre in tight spaces than standard 750kg units.

Does it come with a lightboard and winch?

Yes! When you buy from Morgan Marine, it comes ready for the road. The standard spec includes:

• • A 1000lb or 1400lb Dutton Lainson winch (depending on current stock/spec).
  • A heavy-duty 42mm jockey wheel.
  • A removable lightboard on extendable bars.
  • A Certificate of Conformity, ensuring it is fully road-legal in the UK and Europe.

Can I customise the look of the trailer?

One of the best things about the Extreme range is the "colour-coding" option. While the frame is always galvanised steel, you can often choose the colour of the rollers and winch straps (Blue, Black, Green, Grey, Orange, or Red) to match your boat's livery.
